RED SCARLET

Specification

PACKAGE INCLUDES

1. CAMERA BODY
2. ZEISS CP2 PRIME LENS SET 21 / 28 / 35 / 50 / 85 mm
3. ARRI MATTE BOX
4. ARRI FOLLOW FOCUS
5. SATCHLER LONG TRIPOD
6. SATCHLER VIDEO 25 FLUID HEAD
7. BATTERIES 4X
8. CHARGER
9. PANASONIC 17in MONITOR
10. 5’’ TOUCH LCD
11. RED CAMERA EVF
12. SSDS
13. SSD READER

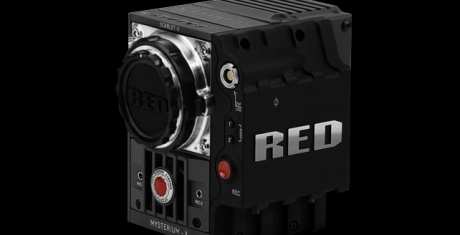

SCARLET-X is the latest addition to the DSMC line of cameras, capable of capturing 5K stills and 4K motion footage. With advanced capabilities such as HDRx alongside a native 13.5 stops of dynamic range, SCARLET-X is the perfect hybrid camera for cinematographers and photographers alike. Upgrade your sensor, add modules, and embrace a system defined by Obsolescence Obsolete.


TECH SPECS


SENSOR: 14 MEGAPIXEL MYSTERIUM-X™

PIXEL ARRAY: 5120 (h) x 2700 (v)

DYNAMIC RANGE: 13.5 stops, up to 18 stops with HDRx™
6 fps with 5K FF and HDRx on
12 fps with 4K HD and HDRx™ on

MAX IMAGE AREA: 5120 (h) x 2700 (v)

LENS COVERAGE: 27.7mm (h) x 14.6mm (v) = 31.4 mm (d)

LENS MOUNT: Brain Only

MAX DEPTH OF FIELD: Equivalent to S35mm (Motion) / APS-H (Still) lenses

ACQUISITION FORMATS: 5K FF REDCODE RAW (Full Frame)
4K HD REDCODE RAW
3K HD REDCODE RAW
1080p REDCODE RAW
1K REDCODE RAW

PROJECT FRAME RATES: 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.97

MONITOR/PROGRAM OUTPUT: HD-SDI and HDMI with Frame Guides and Look Around or Clean Feed 1080p 4:2:2, 720p 4:2:2 SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

DIGITAL MEDIA REDMAG (SSD) Module: (48, 64, 128, 256 and 512GB Media)

REDCODE™ 16-bit RAW Processing: Compression choices of 18:1 to 3:1
1-12 fps 5K FF
1-30 fps 4K HD
1-48 fps 3K HD
1-60 fps 1080p HD
1-120 fps 1K

AUDIO: 2 channel, uncompressed, 24 bit, 48KHz.
Optional 4 channel, and AES / EBU digital audio.

MONITORING OPTIONS: RED LCD 5" Touchscreen Display
BOMB EVF™ High Definition Viewfinder

REMOTE CONTROL: REDLINK Wireless, Ethernet, RS232, GPI Trigger

WEIGHT: 5lbs. Body only

CONSTRUCTION: Aluminum Alloy

COLOR: Battleship Gray Brain Body. All DSMC Modules Black

TEMPERATURE RANGES: Operating Range: 0˚C to +40˚C (32˚F to 104˚F)
Storage Range: -20˚C to +50˚C (-4˚F to 122˚F)

NOTE: Tech specs reflect both current and projected information. Everything is subject to change.
